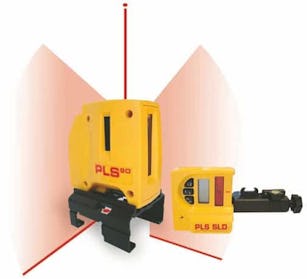

PLS 180

180 degree horizontal and vertical laser system.

Now more than ever, the PLS 180 Palm Laser saves you time and money when your bubble vial level or rotary laser is too limited or too cumbersome to do the job.

• Unique optic technology

• Self Levelling

• Internal shock frame impact protection

• Accurate to +/- 1/8 inch @ 30 feet (+/- 3 mm @ 10 meters)

• Longest lines, vertical-horizontal

• Pulsed beams for exterior applications

• Range +/- 200 feet with our new PLS SLD compact laser receiver



No more plumb bobs in the wind. Place the PLS laser on a column and check plumb using your tape measure to read the down and up PLS reference points. Lay out and install track for commercial or residential projects. Use the PLS90 and your target accessory to project 90 degree angles in a fraction of the time. No more 3-4-5.


Use the PLS reference points down and up to determine where each light is to be installed. How long would it take you to lay out 50 lights in a vaulted ceiling with two men and a plumb bob?

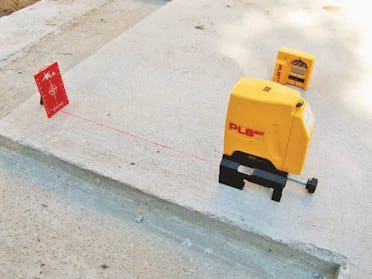

Setting up foundations on a slope is always a challenge. Put the PLS90 on the corner of your layout and pull reference points forward and side. Layout of interior walls, ceilings, stairways, cabinetry, skylights and more can be done quickly and accurately with a PLS laser.


For commercial HVAC, PLS will speed vertical and level layout. Manipulate plumb, level, and square reference anywhere on the job site, regardless of obstacles or weather conditions.


Product specification sheet

product sheet pdfPLS 180 product specification sheet opens in a new window



Topcon logo
Topcon is widely recognised as the industry leader in positioning and surveying equipment. These instruments ensure that any work that is carried out is precise, efficient and in control.
